How to Connect Projector to Laptop Without VGA Port?

I still remember the panic I felt when I first tried to connect my new laptop to a projector at a big presentation and realized my sleek new laptop had no VGA port. Sound familiar? Many modern laptops have ditched VGA ports in favor of slimmer, more versatile connections like HDMI or USB-C. But don’t worry. You can still connect your laptop to a projector smoothly and confidently. Here’s a practical, step-by-step guide to help you do it like a pro.

Why No VGA Port?

Older projectors and laptops relied heavily on VGA (Video Graphics Array), but today, most laptops use:

• HDMI: The most common for video and audio.
• USB-C: Popular on newer laptops like MacBooks and many ultrabooks.
• DisplayPort: Less common but powerful, often used on high-end laptops.

▶ Step 1: Identify Your Laptop’s Available Ports

Take a close look at your laptop. Common options include:

• HDMI (looks like a wide, flat port)
• USB-C (small, oval-shaped, can be used for charging and data)
• Mini DisplayPort (smaller than HDMI, usually square-shaped)

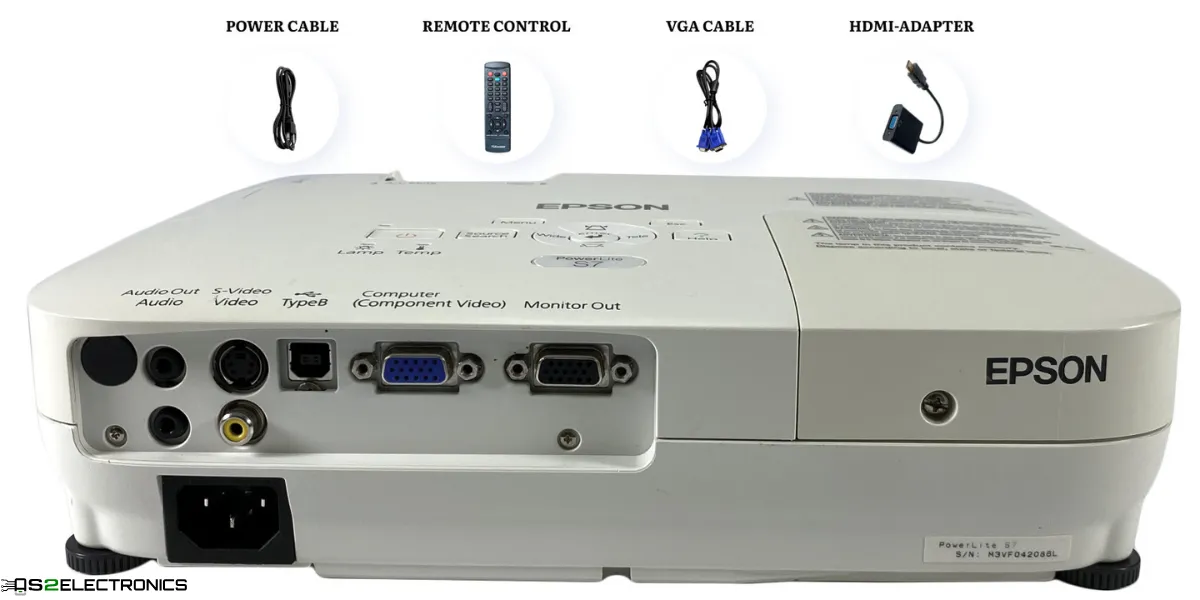

▶ Step 2: Check Your Projector’s Input Ports

Next, look at your projector or Portable Projectors. Many older models still use VGA, but newer ones often include HDMI or even wireless capabilities.

If your projector only has VGA, you’ll need a suitable adapter or converter to bridge the gap between your laptop and the projector.

▶ Step 3: Choose the Right Adapter or Converter

Here’s what you might need depending on your laptop’s port:

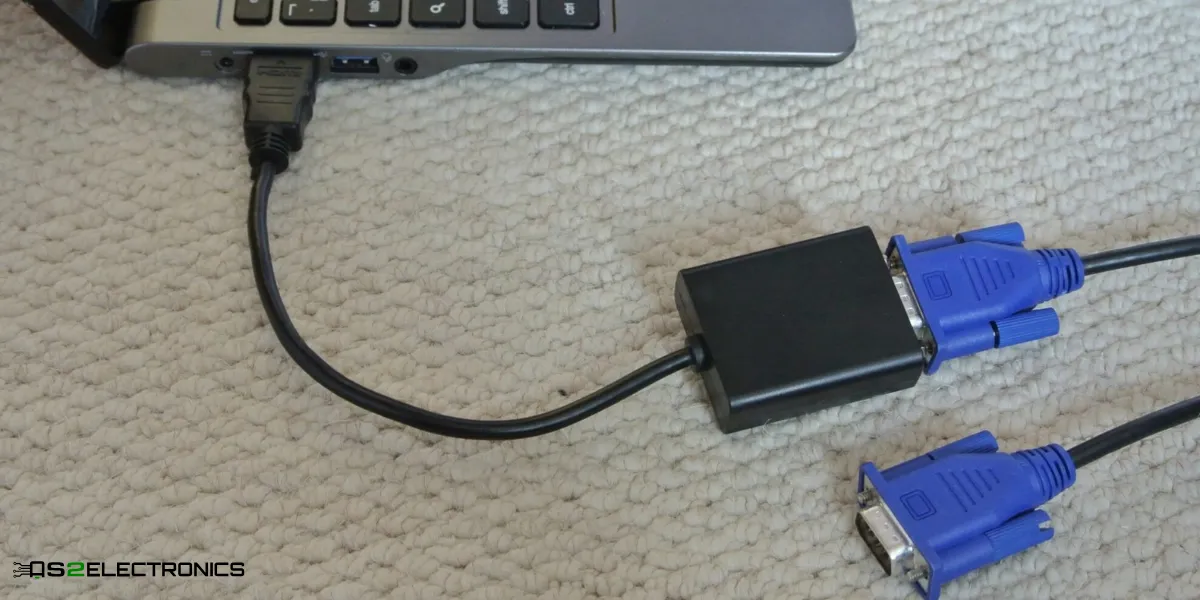

• HDMI to VGA Adapter: If your laptop has HDMI and your projector only supports VGA.
• USB-C to VGA Adapter: For laptops with USB-C ports only.
• Mini DisplayPort to VGA Adapter: For certain older MacBooks and Surface devices.

▶ Step 4: Connect the Adapter to Your Laptop

Plug the adapter firmly into your laptop. If it’s a USB-C or HDMI adapter, you should hear or feel a small click, confirming it’s properly inserted.

Some adapters also require an additional USB power source — check if yours does and connect it accordingly.

▶ Step 5: Connect VGA Cable to Projector

Take a standard VGA cable and connect one end to the adapter on your laptop and the other end to the projector’s VGA port.

Tighten the screws on the VGA connector to ensure a stable connection. Loose connections can lead to screen flicker or loss of signal mid-presentation (trust me — it’s not fun!).

▶ Step 6: Switch the Projector Input Source

Turn on your projector and select the correct input source. Usually, there’s a “Source” or “Input” button on the projector or its remote control.

Cycle through the options until you see the screen from your laptop appear on the projector.

▶ Step 7: Configure Display Settings on Your Laptop

Once connected, your laptop should automatically detect the projector. But if it doesn’t:

• On Windows, press Windows + P and choose one of these options:
  • Duplicate (mirror your screen)
  • Extend (use projector as second screen)
  • Second screen only (only display on projector)
• On Mac, go to Apple Menu > System Preferences > Displays, then click Arrangement and choose your preferred setup.

▶ Step 8: Test Sound (If Needed)

Remember: VGA only carries video, not audio.

If you need audio, you’ll have to connect an additional 3.5mm audio cable from your laptop headphone jack to the projector or external speakers.

Some HDMI to VGA adapters come with built-in audio output ports to make this easier. Always check your adapter features in advance.

Alternative: Consider Wireless Solutions

If you want to avoid cables altogether, check if your projector supports wireless casting (like Miracast, Chromecast, or Apple AirPlay).

Wireless connections can be a bit trickier to set up the first time but are great for reducing clutter and letting you move around more freely during presentations.

✅ Quick Recap

• Identify your laptop and projector ports first.
• Get the right adapter (HDMI to VGA, USB-C to VGA, etc.).
• Connect everything securely and select the correct input.
• Adjust your display settings for the best viewing experience.

Also Read: 7 Reasons Why the Samsung Fold 7 Might Disappoint You

Conclusion

Connecting a projector without a VGA port isn’t as scary as it sounds. With the right adapter and a bit of preparation, you’ll be presenting slides or streaming videos on the big screen in no time. As someone who has helped set up countless projectors in classrooms and conference rooms, I promise: once you do it once or twice, it’ll feel second nature.
