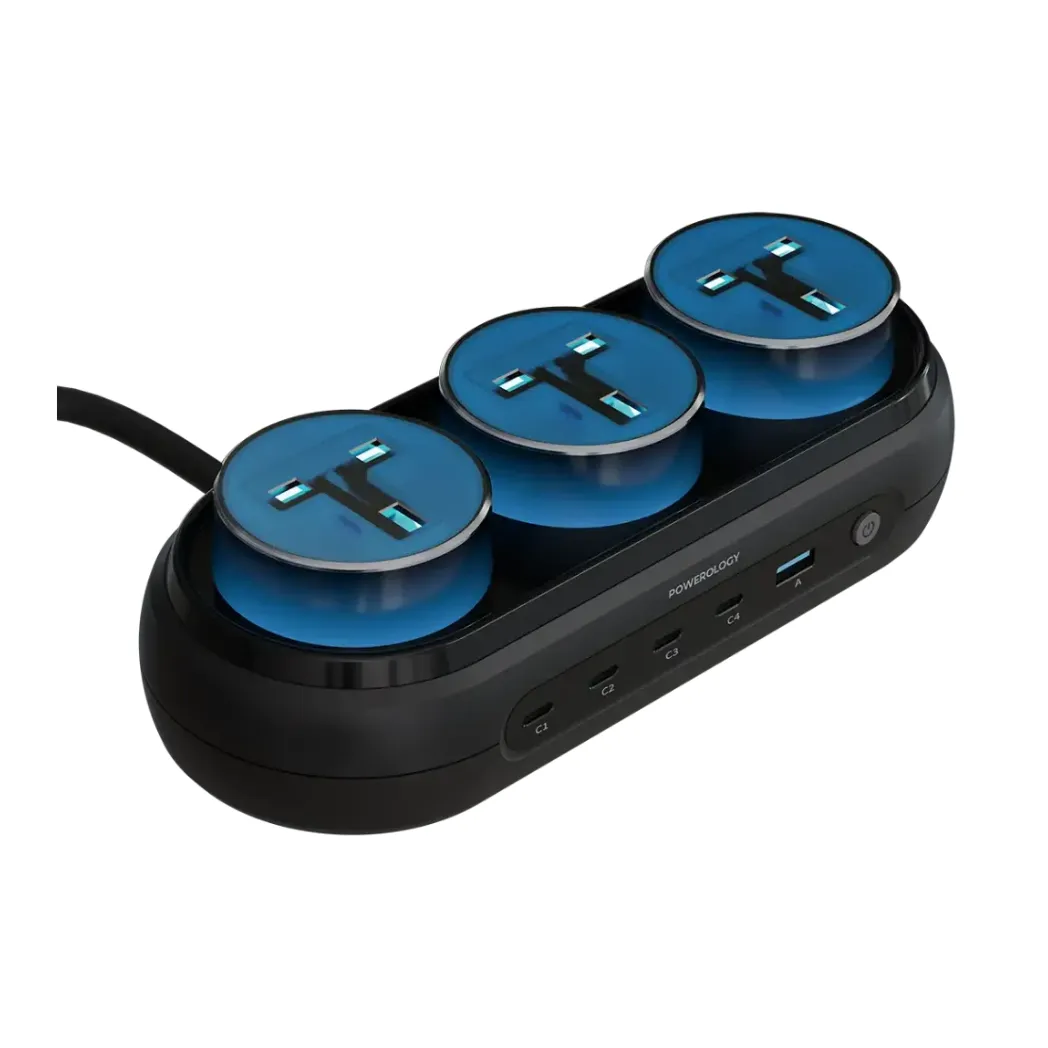

Powerology Holix GaN Multi-Port Power Station 160W

Powerology Holix GaN Multi-Port Power Station Overview

The Powerology Holix GaN Multi-Port Power Station is designed for users who need a central charging solution capable of powering several devices from a single unit. It combines multiple USB-C and USB-A outputs with a high-power AC input and a 1.5m UK 3-pin power cord, making it suitable for office desks, professional workstations and other environments where several electronic devices need to be powered at the same time.

The charging system provides up to 140W through USB-C1 and up to 100W through USB-C2. USB-C3 and USB-C4 each support up to 20W PD, while the USB-A output supports up to 18W through Quick Charge. The total DC output is rated at up to 160W, with different power combinations available depending on which ports are being used simultaneously.

High-Power USB-C Charging

USB-C1 provides a maximum output of 140W with supported profiles of 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A and 28V/5A. This makes it the highest-output USB-C port on the Powerology Holix and suitable for compatible high-power devices.

USB-C2 supports up to 100W and provides 5V/3A, 9V/3A, 12V/3A, 15V/3A and 20V/5A output profiles. Together, USB-C1 and USB-C2 provide a practical solution for users who need to charge more than one high-power USB-C device.

Key Features

Feature	Details
USB-C1 Output	Up to 140W with 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A and 28V/5A profiles.
USB-C2 Output	Up to 100W with 5V/3A, 9V/3A, 12V/3A, 15V/3A and 20V/5A profiles.
USB-C3/C4 Output	Up to 20W PD with 5V/3A, 9V/2.2A and 12V/1.67A profiles.
USB-A Output	Up to 18W QC with 5V/3A, 9V/2.2A and 12V/1.5A profiles.
Total DC Output	Supports up to 160W total DC output.
AC Rated Power	Rated at 3250W for AC power delivery.
Rated Voltage	Supports AC 100–240V input.
Maximum Current	Rated for up to 13A maximum current.
Power Cord	Includes a 1.5m UK 3-pin power cord.
Charging Combinations	Supports multiple port combinations with different power allocations.

Multiple Charging Configurations

The Powerology Holix supports different output combinations depending on the ports used simultaneously. When USB-C1 and USB-C2 are used together, the specified allocation is 100W + 45W. Other configurations include C1 + C3/C4 at 140W + 20W and C1 + A at 140W + 18W.

For multi-device charging, the specifications also include combinations such as C1 + C2 + C3/C4 at 100W + 30W + 20W and C1 + C2 + A at 100W + 30W + 18W. These configurations allow the available charging power to be distributed according to the connected devices and selected ports.

USB-C3, USB-C4 and USB-A Charging

USB-C3 and USB-C4 provide up to 20W PD individually, with supported output profiles of 5V/3A, 9V/2.2A and 12V/1.67A. These ports are suitable for compatible smartphones, tablets and other USB-C devices that require lower charging power than a laptop.

The USB-A output supports up to 18W QC and provides 5V/3A, 9V/2.2A and 12V/1.5A output profiles. This provides compatibility with suitable USB-A charging cables and devices that support the listed charging requirements.

AC Power Capacity

The Powerology Holix has a rated AC power of 3250W and supports AC 100–240V at 50/60Hz. Its maximum current is specified at 13A. These ratings apply to the AC power section and are separate from the charger’s USB DC output specifications.

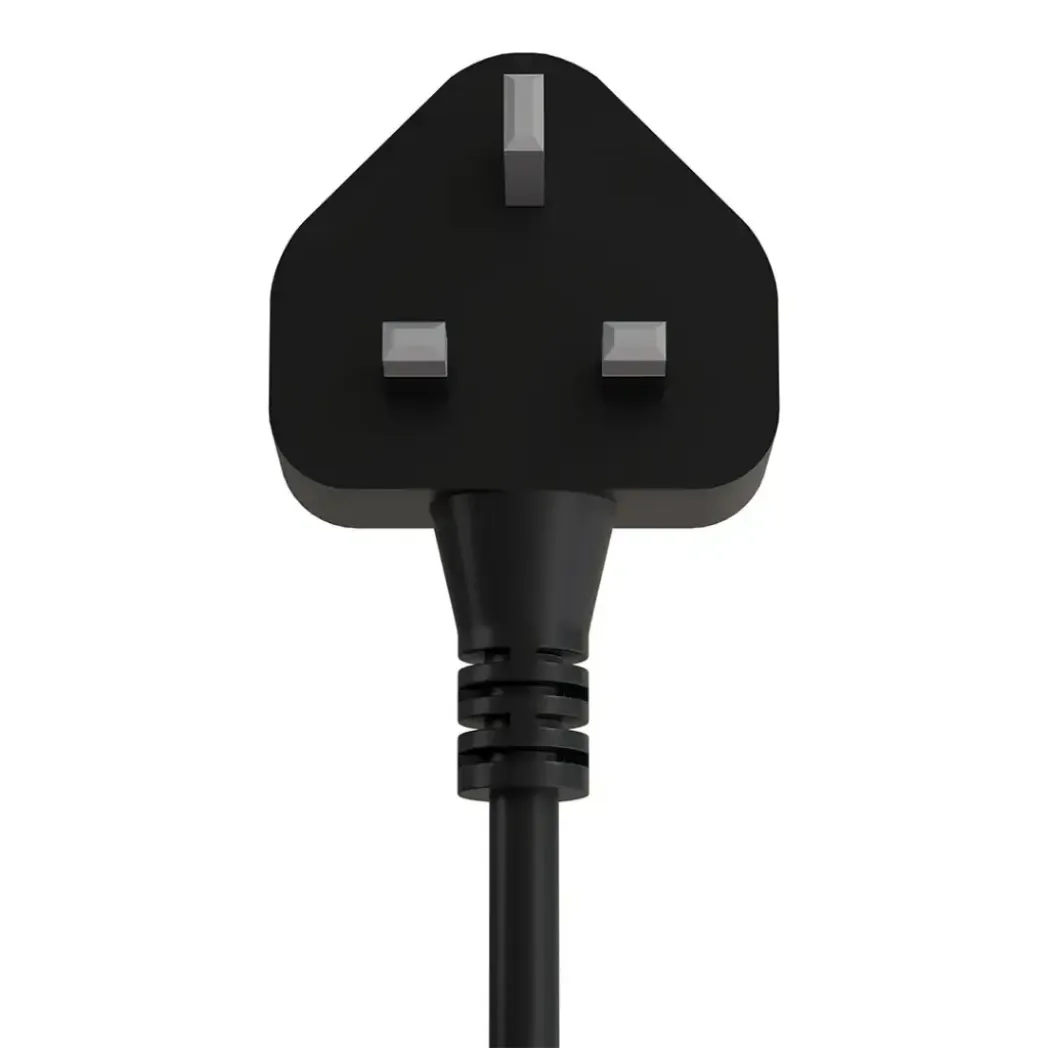

The included 1.5m UK 3-pin power cord provides additional reach when positioning the charging station on a desk, workstation or other suitable surface. Users should ensure that connected AC equipment remains within the rated capacity of the power station.

High-Power Device Charging

With up to 140W available through USB-C1 and up to 100W through USB-C2, the Holix is suitable for compatible high-power USB-C devices. It can be used to charge compatible laptops and other devices that support USB Power Delivery at the required power level.

Actual charging performance depends on the connected device, cable, charging protocol and the number of active ports. The maximum output of an individual port should not be interpreted as a guarantee that every connected device will receive its maximum charging rate simultaneously.

See Our Mobile Accessories in UAE

Workstation and Multi-Device Use

The multi-port design makes the Powerology Holix suitable for workstations where laptops, smartphones, tablets and other USB-powered accessories may need to be charged together. Instead of using several separate charging adapters, users can consolidate compatible USB charging requirements into one central power station.

The variety of USB-C and USB-A outputs also makes the unit suitable for mixed-device environments where different charging connectors are required.

Everyday Charging

The Powerology Holix can be used in offices, professional workspaces, home desks and other fixed charging environments. Its high AC rating provides mains power capacity while the USB section offers dedicated charging outputs for compatible mobile and computing devices.

The 160W maximum total DC output provides substantial combined USB charging capacity, while the listed port combinations define how power can be distributed when several outputs are active.

Final Thoughts

The Powerology Holix GaN Multi-Port Power Station combines high-power AC capability with multiple USB charging outputs in one charging hub. With up to 140W USB-C1 output, 100W USB-C2 output, 20W PD through USB-C3/C4, 18W QC through USB-A and up to 160W total DC output, it is designed for users who need a flexible solution for charging multiple compatible devices from one location.

Frequently Asked Questions

1. What is the maximum USB-C output of the Powerology Holix?

USB-C1 supports up to 140W, while USB-C2 supports up to 100W for compatible devices.

2. What is the total DC output of the Powerology Holix Multi-Port Power Station?

The Powerology Holix supports a maximum total DC output of 160W.

3. Can the Powerology Holix charge a laptop?

Yes. USB-C1 provides up to 140W and USB-C2 up to 100W, making them suitable for compatible laptops that support USB Power Delivery.

4. Does the Powerology Holix support USB-A charging?

Yes. Its USB-A output supports up to 18W with Quick Charge-compatible devices.

5. What voltage and current does the Powerology Holix support?

The AC input is rated at 100–240V and 50/60Hz, with a maximum current rating of 13A.
